200W
5 Years

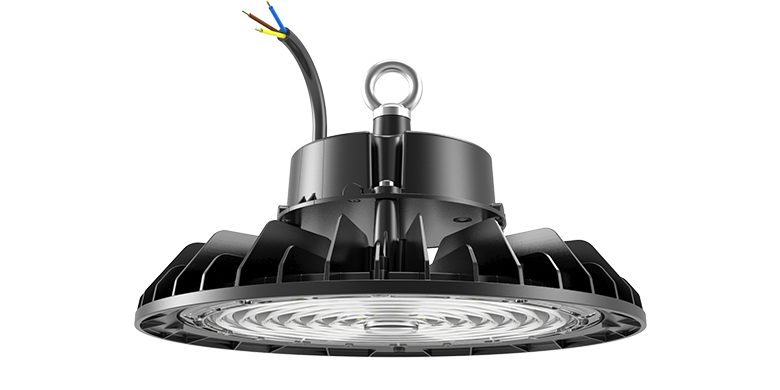

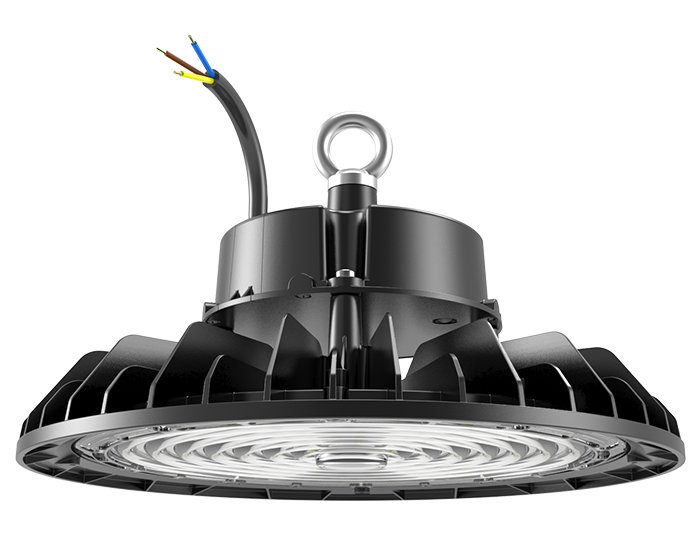

Series | T-Series LED High Bay Light |
Power | 100W, 150W, 200W |
Efficacy | 150LM/W, 170LM/W |
Input Voltage | 120-277VAC, 50/60Hz |
Power Factor | >0.9 |
Surge Protector | 6KV Line-Line, 6KV Line-Earth |
Control | 1-10V, DALI2(Optional) |
IP Rating | IP65 |
IK Rating | IK09 |
CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
CRI | CRI>70 Standard, CRI>80 Optional |
Operating Temperature | -30°C — +40°C |

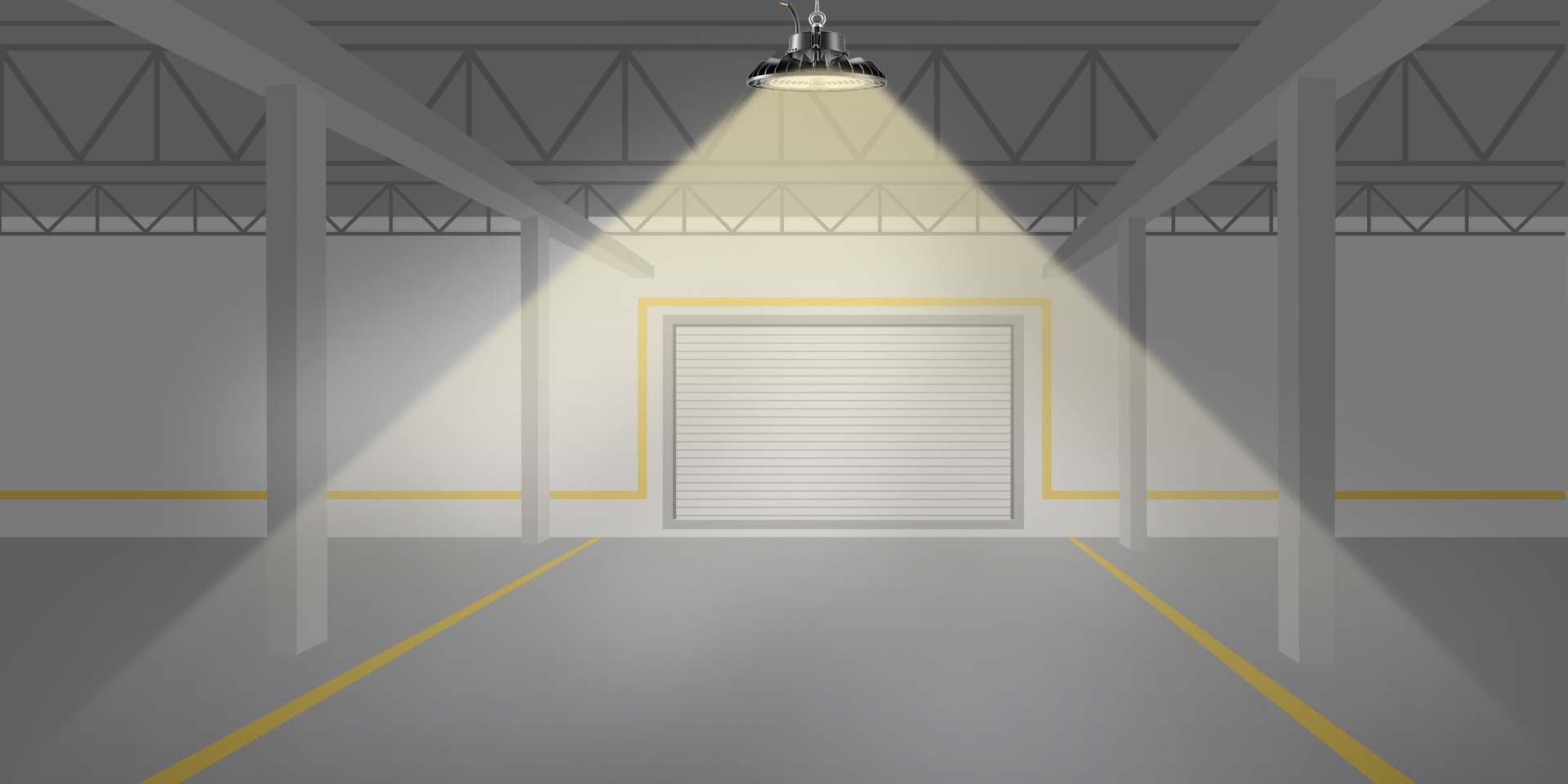

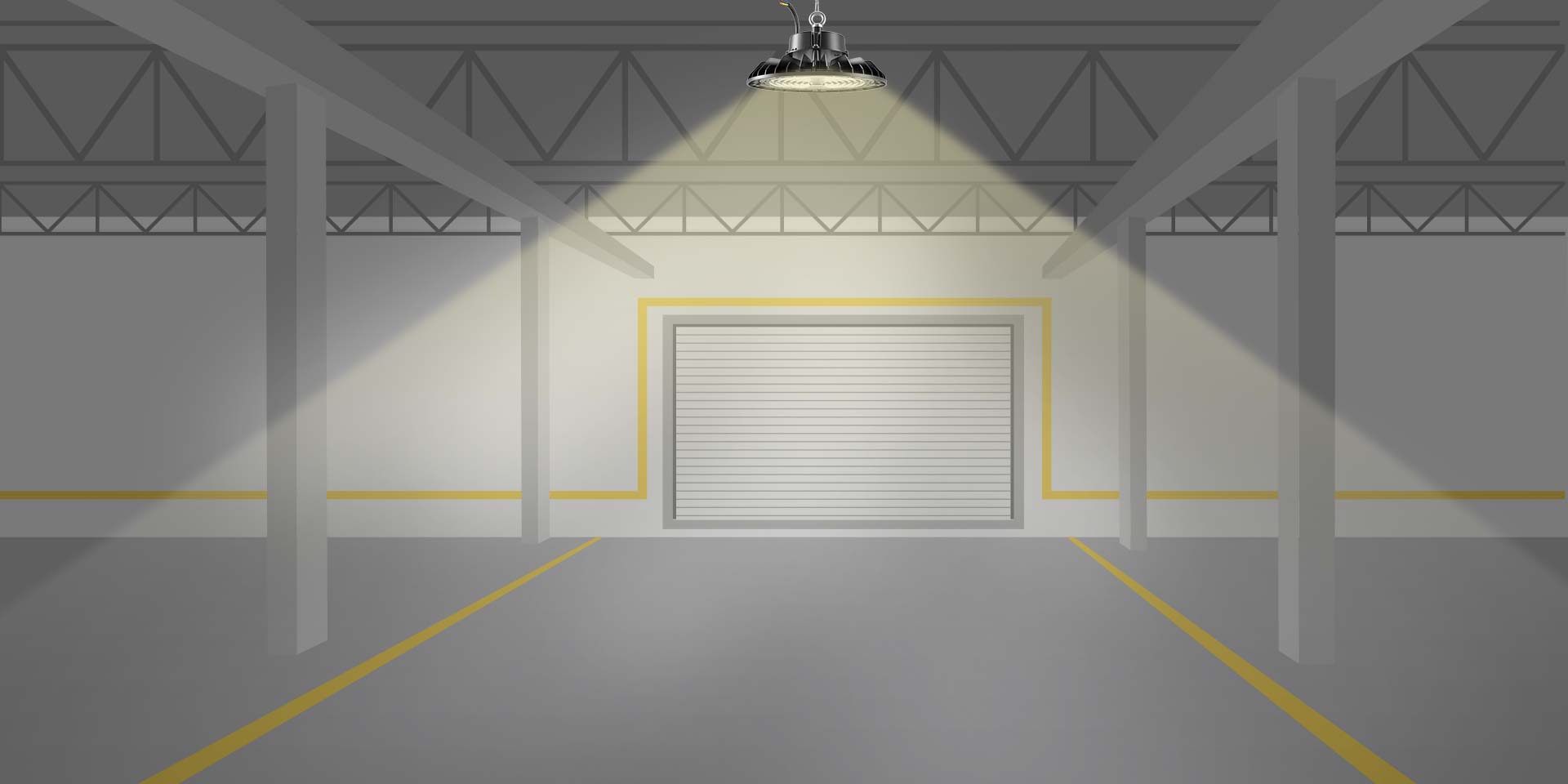

Beam Angle | 60°, 90°, 120° |

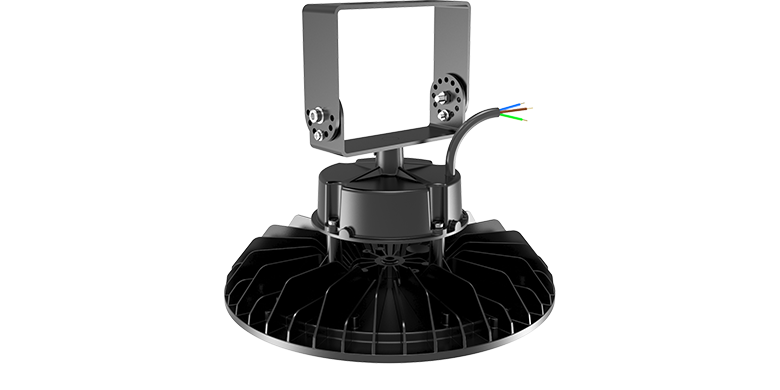

Mounting Option | Loop Hanging,Bracket Mounting |

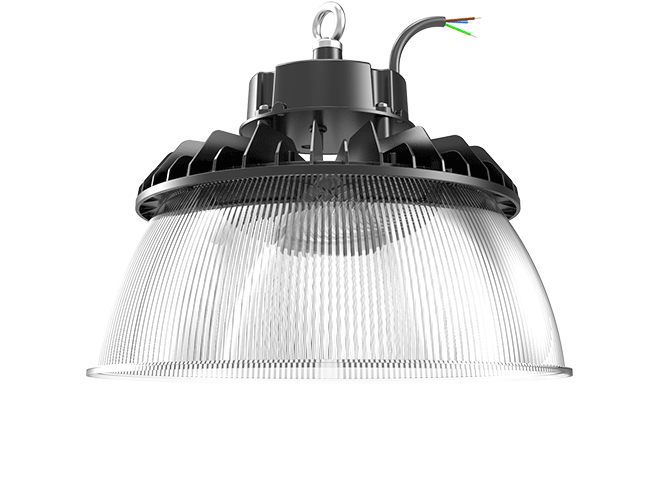

Reflector | Aluminum Reflector/PC Reflector |
Warranty | 5 Years Warranty |
Datasheet(T-Series)
Installation Guide(T-Series)
