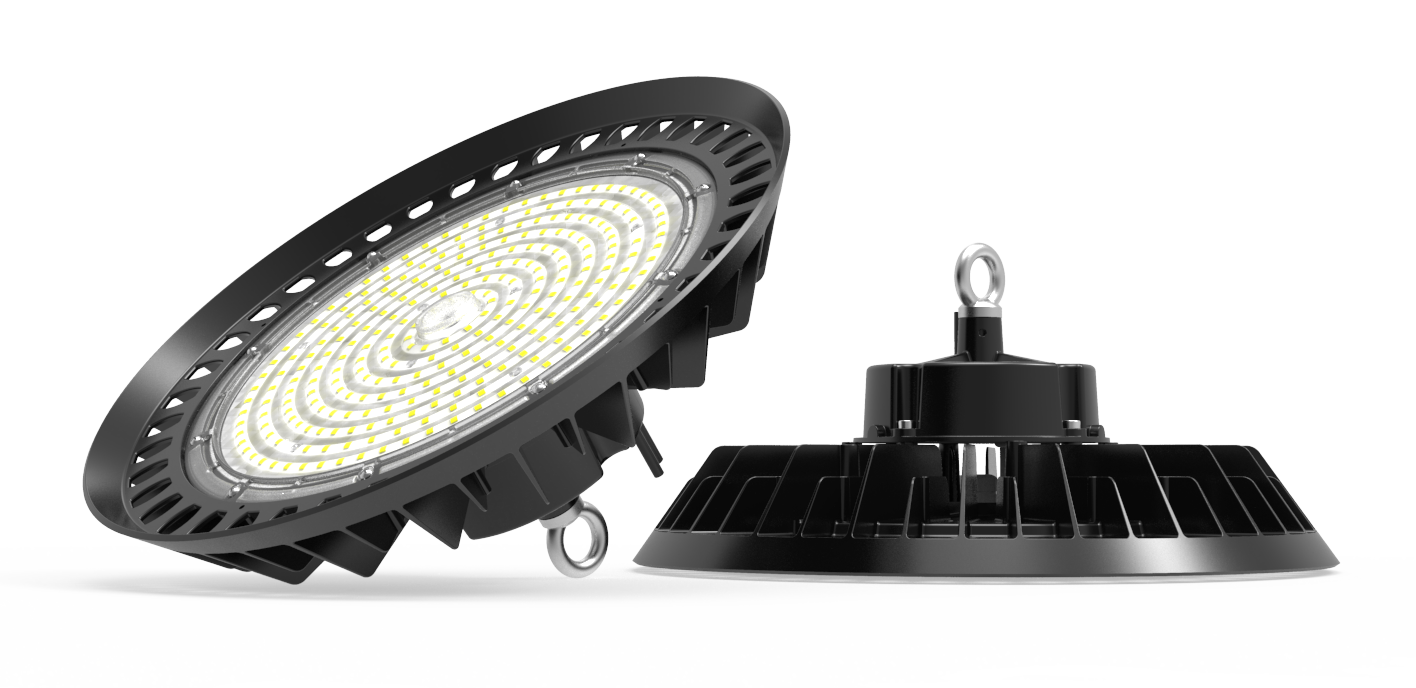

HomePage Product LED High Bay Light K-Series High Bay

Up To 210LM/W

Thanks to the enduring design of the K-Series industrial lighting,which is suitable for a wide range of applications.The LED High Bay also with a compact housing design that has been repeatedly optimised for high quality heat dissipation and reduced dust build-up

A Variety Of Power Supply Options

Applications like warehouses, distribution centers, production facilities and other industrial spaces with occupancy less than 50% and high ceilings (15–45 ft) are ideal environment for sensors.It helps saving-energy costs by delivering light only where you need it,when you need it.
Up To

300W

Warranty

5 Years

Multi-Angle Display

Precise beam angle design Unlike most suppliers in this industry usse public lens in their UFO Shape High Bay.We design our own lens to reach a higher effiency and precise beam control.It is easy to tell the difference when you have the product on hand to compare.

60°

90°

120°

Mounting Options

Eye-Bolt,Or Adjustable Bracket For Surface Mounting

Anti-Glare Reflector

Use this reflector to reduce glare from your 100-150-200 Wattage UFO LED High-Bay Light and to create a traditional high-bay look.The reflector installs around the fixture's lens and comes with 4 screws to secure it in place.
Reduce Glare To

UGR<22

Build-in Sensor Available

Applications like warehouses, distribution centers,production facilities and other industrial spaces with occupancy less than 50% and high ceilings (15–45 ft) are ideal environment for sensors.It helps in saving-energy costs by delivering light only where you need it,when you need it.

Detail Parameters

Series K-Series
Power 60W, 100W, 150W, 200W, 240W, 300W
Efficacy 210LM/W,190LM/W,170LM/W,150LM/W
Input Voltage 120-277VAC, 50/60Hz
Power Factor >0.93
Surge Protector 6KV Line-Line, 6KV Line-Earth
Control 1-10V, DALI2(Optional)
IP Rating IP65
IK Rating IK09
CCT 6500K,5700K,5000K,4000K,3000K
CRI 80,70
Operating Temperature -30°C — +50°C
Beam Angle 60°, 90°, 120°
Mounting Option Loop Hanging, Bracket Mounting
Reflector Aluminum Reflector/PC Reflector
Warranty 5 Years Warranty

Downloads

IES Report

Test Report

Certification
